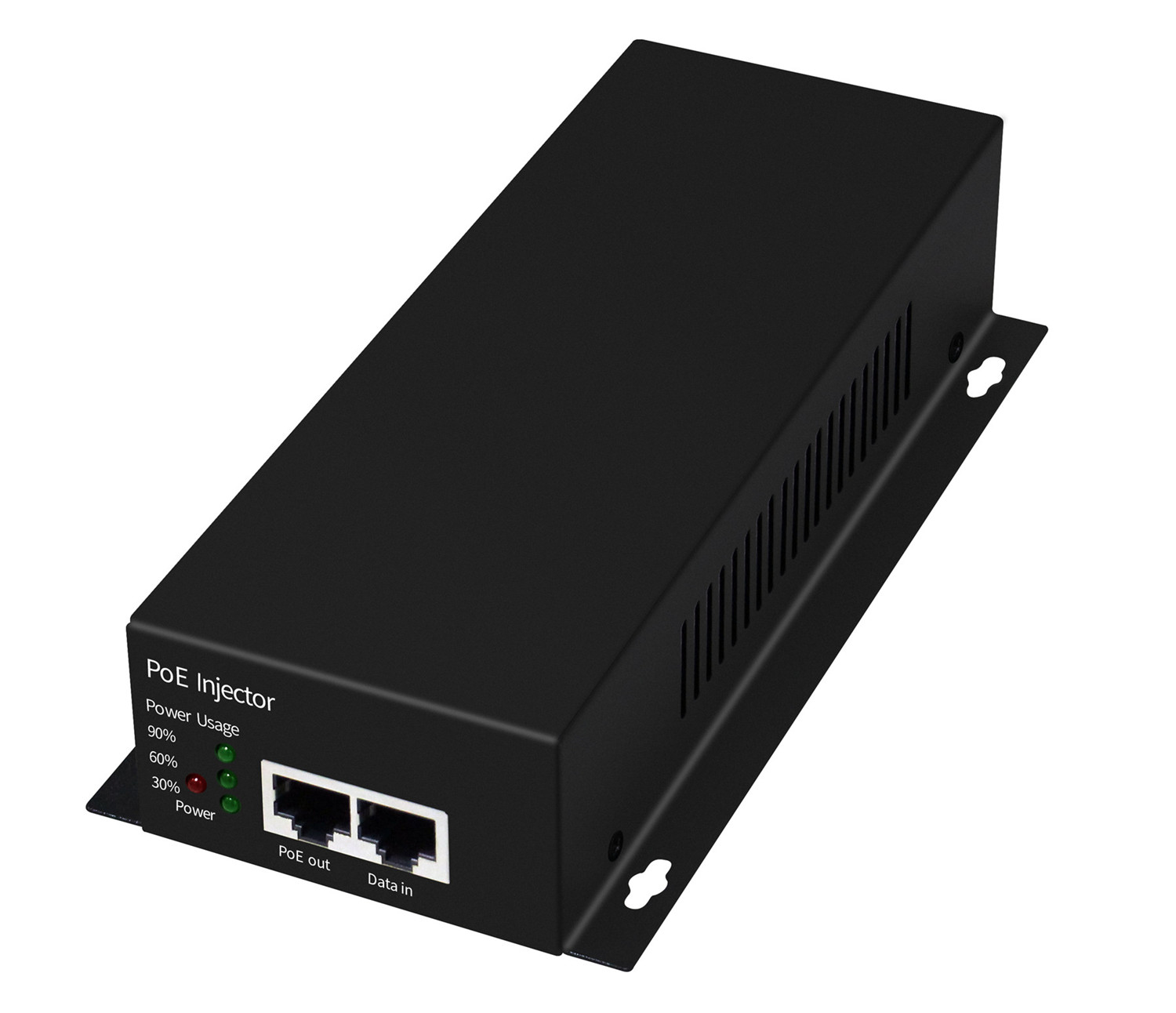

INJ-G01-90W is a Gigabit Ethernet POE Injector. Its max POE output power is up to 90W and its data input port supports 10/100/1000Mbps self-adaption. It supports power input AC100-240V, working temperature -20°C ~ + 50°C, and the industrial-grade chip is used to enhance the design. It provides surge protection, and complies with FCC, CE, RoHS standards. Reliable metal case design can ensure your uninterrupted and stable operation of the automation system. This product is widely used in networks and digital signage display system. For installation, please use and connect the Grounding to achieve surge protection. Standard warranty 2 years.
•Support 1 x 10/100/1000Mbps POE port and 1 x 10/100/1000Mbps Ethernet data port
•Compatible with IEEE802.3af（15.4W）, IEEE802.3at（30W）and IEEE802.3bt（90W）
•Support power monitoring 30%, 60%, 90% three displays
•Support power input from AC100V to AC240V
•Metal case，IP20 protection grade, working temperature -20°C ~ +50°C
•Support port surge protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV, Air 15KV
